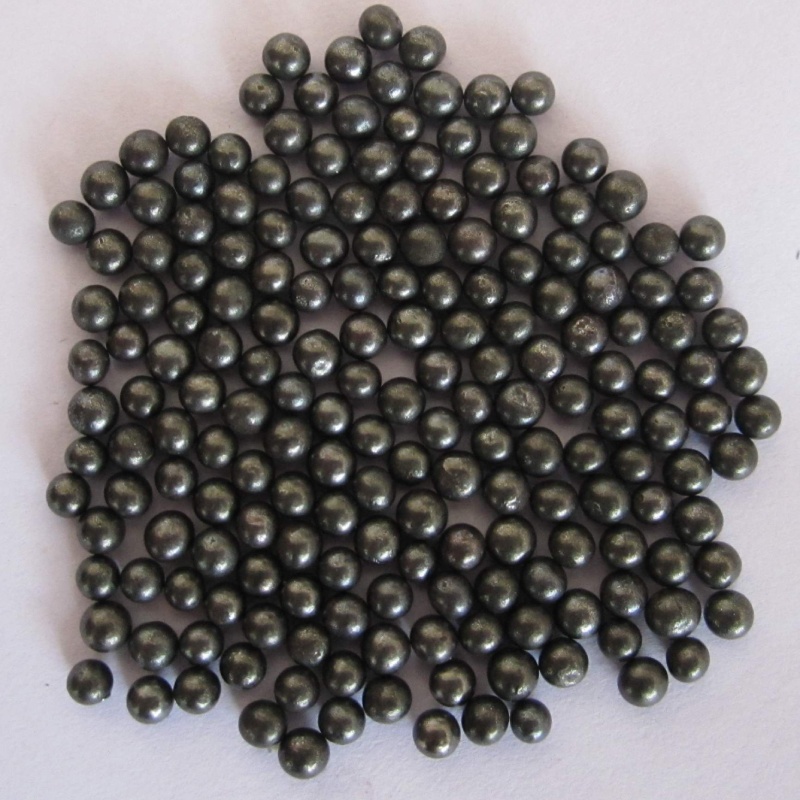

Low Carbon Steel Shot
Low carbon steel shots contain less carbon, phosphorus and sulfur than high carbon steel shots. Therefore, the internal micro structure of low carbon shots are much smoother. It is softer compared to high carbon steel shots too. This results in 20 – 40 % longer abrasive life time.
Applications:
Typical application areas: pre-treatment of steel or cast-iron surfaces before painting, descaling and rust removal, deburring.
● Advantages
1. Ideal for use to provide clean, polished metal surface.
2.It is used both turbine and compressed air blasting systems. Low carbon steel shots ensure lower turbine blades wear.
3.Low carbon steel shots life cycle is about 30% longer than conventional high carbon steel shots.
4.Shot blasting process produces less dust, that results in lower maintenance costs of filtration system.
● Specification
|
Product name |
Low carbon steel shot |
|
|
Chemical Composition |
C |
0.183% |
|
Mn |
0.521% |
|
|
Si |
0.142% |
|
|
S |
0.012% |
|
|
P |
0.023% |
|
|
Cr |
0.45% |
|
|
Microstructure |
Bainitic |
|
|
Service time |
2600-3600 times |
|
|
Average Hardness |
HRC45 |
|
|
Density |
≥7.45g/cm3 |
|
|
Bulk Density |
≥4.4g/cm3 |
|
● Application
|

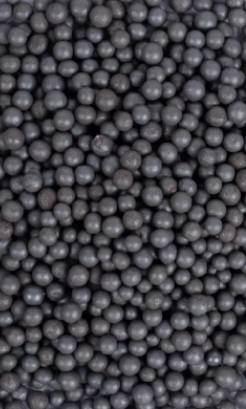

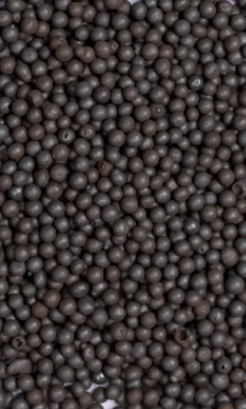

S780(2.5mm) S660(2.0mm) |
Sand removal from large castings, oxide scale removal from forgings and heat-treated parts, shot blasting cleaning of steel plates, sections, and structural components, and shot peening for surface strengthening of workpieces. |
|

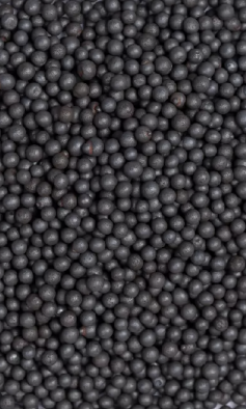

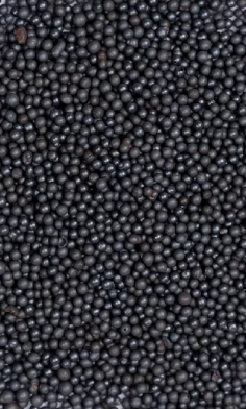

S550(1.7mm) S460(1.4mm) |
Sand removal from large and medium-sized castings; oxide scale removal from forgings and heat-treated parts; rust removal and pre-painting treatment of steel plates, sections, pipes, and structural components; shot blasting and shot peening of workpiece surfaces; stone sawing. |
|

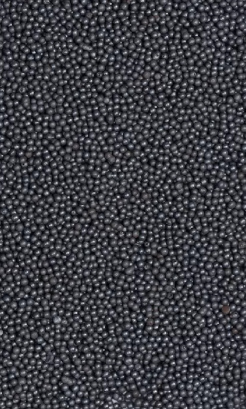

S390(1.2mm) S330(1.0mm) |
Sand removal for small and medium-sized castings; rust removal and pre-painting treatment for forgings, heat-treated parts, steel plates, steel pipes, structural steel sections, and structural steel parts; shot blasting and shot peening for workpiece surfaces; stone sawing. |
|

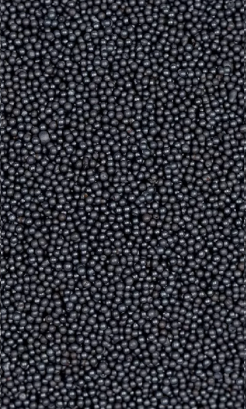

S280(0.8mm) S230(0.6mm) |
Sand removal for small precision castings; rust removal and pre-painting treatment for forgings, heat-treated parts, steel plates, steel pipes, structural steel sections, and structural steel parts; shot blasting and shot peening for workpiece surfaces; rust removal and shot blasting for forgings, heat-treated parts, aluminum alloys, copper alloy castings, steel plates, steel strips, steel pipes, steel wires, and tools; pre-plating treatment and shot peening. |
|

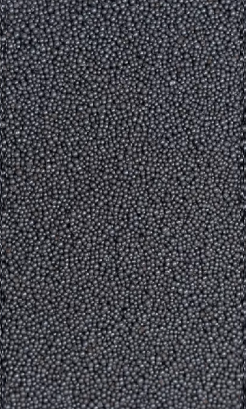

S170(0.5mm) S110(0.3mm) S70(0.2mm) |
Surface pretreatment of stainless steel sheets, thin steel sheets, and non-ferrous alloy parts; wire strengthening treatment; Dacromet sandblasting pretreatment. |
|
S930/SS3.0 |
S780/SS2.5 |
S660/SS2.0 |
S550/SS1.7 |
S460/SS1.4 |

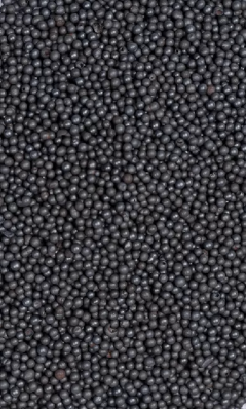

S390/SS1.2 |
|
|
|
|
|
|
|
|
S330/SS1.0 |
S280/SS0.8 |

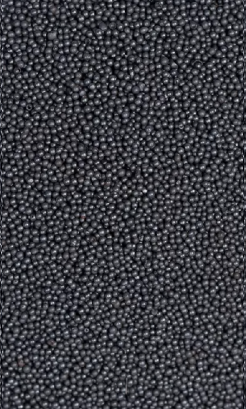

S230/SS0.6 |
S170/SS0.5 |

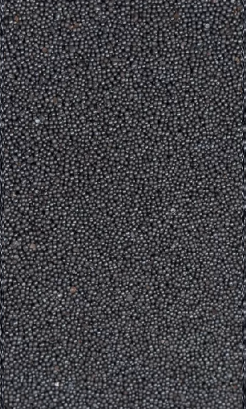

S110/SS0.3 |

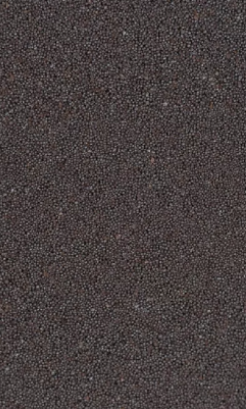

S70/SS0.2 |
|
|
|
|
|
|
|
|
Specification of Cast Steel Shot |
|||||||||||||
|
Mesh |
mm |
S930/SS3.0 |
S780/SS2.5 |
S660/SS2.0 |
S550/SS1.7 |
S460/SS1.4 |
S390/SS1.2 |
S330/SS1.0 |
S280/SS0.8 |
S230/SS0.6 |
S170/SS0.5 |
S110/SS0.3 |
S70/SS0.2 |
|
6 |
3.35 |
0%max |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
2.8 |
- |
0%max |
|
|
|
|
|
|
|
|
|
|
|
8 |
2.36 |
90%min |
- |
0%max |
|
|
|
|
|
|
|
|
|
|
10 |
2 |
97%min |
85%min |
- |
0%max |
0%max |
|
|
|
|
|
|
|
|
12 |
1.7 |
|
97%min |
85%min |
- |
5%max |
0%max |
|
|
|
|
|
|
|
14 |
1.4 |
|
|
97%min |
85%min |
- |
5%max |
0%max |
|
|
|
|
|
|
16 |
1.18 |
|
|
|
97%min |
85%min |
- |
5%max |
0%max |
|
|
|
|
|
18 |
1 |
|
|
|
|
96%min |
85%min |
- |
5%max |
0%max |
|
|
|
|
20 |
0.85 |
|
|
|
|
|
96%min |
85%min |
- |
10%max |
0%max |
|
|
|
25 |
0.71 |
|
|
|
|
|
|
96%min |
85%min |
- |
10%max |
|
|
|
30 |
0.6 |
|
|
|
|
|
|
|
96%min |
85%min |
- |
0%max |
|
|
35 |
0.5 |
|
|
|
|
|
|
|
|
97%min |
- |
10%max |
|
|
40 |
0.425 |
|
|
|
|
|
|
|
|
|
85%min |
- |
0%max |
|
45 |
0.355 |
|
|
|
|
|
|
|
|
|
97%min |
- |
10%max |
|
50 |
0.3 |
|
|
|
|
|
|
|
|
|
|
80%min |
- |
|
80 |
0.18 |
|
|
|
|
|
|
|
|
|
|
90%min |
80%min |
|
120 |
0.125 |
|
|
|
|
|
|
|
|
|
|
|
90%min |
● Effects and packaging
 |
 |
